New Ice Cream Uses Ishida Inspection System

14 Jun 2016

Add packaginginsights as a preferred source on Google

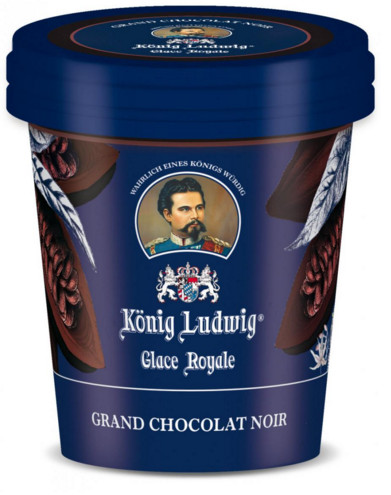

A luxury ice cream in aluminum-coated paper cups goes through X ray and checkweighing machines from Ishida. “Konig Ludwig Glace Royale” is the new ice cream for the luxury sector, produced by Berlin-based Florida-Eis Manufaktur. Named after King Ludwig II who had a penchant for ice cream specialities, it combines the delicacies of French patisserie with sweet Bavarian desserts. The range features ten varieties with flamboyant titles such as “Bavarian creme with fine elderflower,” “Duet of yoghurt and apricot” and “Intense cherry.” The high quality packaging comprises exquisitely printed dark blue, aluminium-coated 500ml paper cups. Using a metal detector was out of the question because an aluminum coating has been applied to the paper cups to give them a silver luster. In addition, not all foreign bodies that could potentially enter the production process are necessarily metallic - some are stones or plastic.

All these different types of potential contaminants can be reliably detected by the Ishida X IX-GA-4075 X-ray inspection system, which is installed at the end of the line. The machine is also capable of detecting very tiny foreign bodies made from different kinds of metal in the -7°C ice cream. The inspection function operates regardless of the temperature and water content of the food. The patented technology behind Ishida’s X-ray inspection system is based on software featuring an intelligent genetic algorithm. By analyzing image data over a number of generations, the machine achieves an extremely high level of inspection accuracy. Since similar contaminants are usually found again and again in ice cream manufacture, the system can, with each inspection procedure, create an increasingly accurate comparison log. A data log collects valuable visual and numerical information and helps to eliminate recurring sources of contamination. In this way, Florida-Eis Manufaktur can demonstrate that its production and packaging processes are properly and correctly performed. King Ludwig II easy-to-use IX-GA-4075 features an automatic set-up function and is ready for operation within 90 seconds. Precision adjustments can be made during ongoing production. A hygiene-friendly, IP65 open-frame design means that it can be easily cleaned. Up to 100 programmable pre-sets permit rapid product changes.

To ensure the correct weight, the ice cream pots - once they have been manually filled and then automatically covered - are sent to a DACS-W checkweigher from Ishida. The machine’s compact design means that it can be easily integrated in the line. The high-speed loadcell has an accuracy of 0.2 grams, while a special system compensates for floor vibrations. Sundaes that are not the correct weight are reliably separated by a pneumatic arm. A range of useful diagrams and histograms are used for monitoring production. Largely maintenance-free, the checkweigher is operated via a touch screen, and the 100 product parameter settings allow rapid product changes. The conveyors can be removed for cleaning without the need for special tools.

“Thanks to Ishida systems, I can sleep easier at night. As a manufacturer of premium products, we are subject to special scrutiny. For they, quality assurance is an ethical matter, too. The future is in X-ray inspection technology in particular, and the procurement costs are more or less the same as for metal detectors,” explains Florida-Eis Manufaktur owner Olaf Hohn on why he was so keen to make these investments in the QC system. The company is already looking to expand production. In addition to switching to two-shift operation, it is also planning to procure new machines, with the QC systems again being purchased from Ishida.

Source: Konig Ludwig Glace Royale
