Quick-Strip, Easy-Clean Pumps for Hygienic Applications

Transferring liquids in food, brewing, pharmaceutical and other similar hygienic process applications requires easy-to-clean, easy-to-maintain smooth, stainless steel pumps without dead areas and traps.

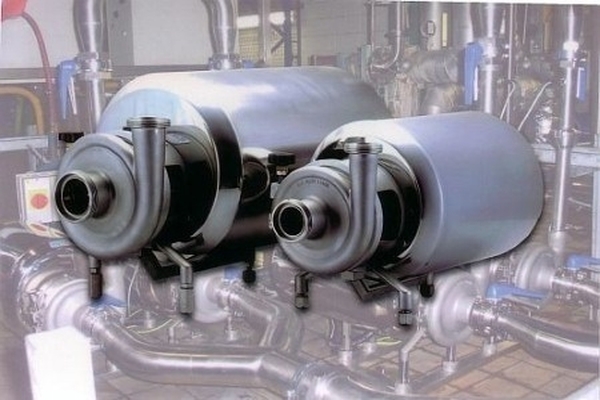

CSF pumps are manufactured in investment cast AISI 316L stainless steel, with stainless steel for all wetted parts.  They also feature a 6 vane impeller which facilitates the handling of ‘challenging’ liquids which occur in many food processing applications, for example syrups for soft drinks manufacturing and those containing particles or small solids.

The pumps are designed for CIP (Clean-in-Place) to ensure the absence of dead areas and feature electro polished finishing of all surfaces.  CSF pumps are available with standard or ATEX certified motors, these are back pull-out design and fitted with a quick-release clamp to enable fast and simple dismantling.

The CSA version has an electro polished finish to 0.5µm Ra and is approved to US FDA 3A standard or European EHEDG standards, with an aseptic version available for pharmaceutical applications.
Depending on the duty CSF-CS and CSA pumps can be supplied with an internal or external single mechanical seal or flushed double mechanical seal for handling high temperature liquids, or those with a tendency to crystallise.  Elastomers are available in a choice of Viton, EPDM, silicon or PTFE.

Typical applications for CSF-CS hygienic pumps include transferring syrups, sugar solutions, flavourings, salad washing, alcohols, beer, milk, oils, vinegar, fruit juices, high purity water, CIP solutions, suspensions, yeast and melted butter.

Source: PUMP ENGINEERING
